Quick-change workholding is supposed to feel effortless: mount a plate, lock it, run the job, swap the next plate, repeat. But when repeatability starts slipping, the symptoms show up everywhere—extra checks, unexpected finish changes, small alignment corrections that weren’t needed before. In many shops, the root cause isn’t the machine or the hydraulic vise. It’s the interface part everybody ignores: the pull stud.
Why Pull Studs Are “Small” but Not “Minor”
In a zero-point or 3R-style ecosystem, the pull stud is the handshake between your fixture/pallet and the base chuck. It’s repeatedly seated, clamped, released, and reseated. That repeated contact is exactly where wear and inconsistency can accumulate—and once the interface becomes inconsistent, the whole “quick-change” promise starts to leak time.
What to Care About (Beyond “Does It Fit?”)
For 3R-compatible workflows, a pull stud should be treated like controlled tooling, not generic hardware. Three properties tend to decide long-term stability:
- Material: affects wear and corrosion behavior
- Heat treatment / hardness: affects how well it resists deformation over many cycles
- Surface condition: affects how it interacts with contamination (coolant film, chips, dust)
If you want repeatability over months—not just on day one—those details matter.
Why Hardness Is a Practical Shop Variable
Hardness is not just a spec-sheet flex. In shop terms, higher hardness generally helps the stud maintain consistent contact geometry under repeated clamping cycles. That means:
- less gradual “mystery drift”
- fewer changes in seating behavior over time
- more consistent re-mounting without extra indicating
Hardness won’t fix a dirty interface, but it helps the interface stay stable when your production reality isn’t perfect.
The Fastest Way to Break Repeatability: Mixing Standards and Wear States
One of the most common operational problems is not choosing the “wrong” stud—it’s mixing studs across plates and fixtures without controlling for wear, batches, or standards. Even if everything is “compatible,” different wear states can create different seating feel and different repeat behavior. If you want quick-change to behave like a system, the system must be consistent.
A Simple Shop SOP That Prevents Most Problems
If you want a practical routine that actually works on the floor, keep it minimal and repeatable:
- Standardize one pull stud spec per ecosystem (don’t mix “almost the same” parts)
- Clean before docking (chips and film matter more than people admit)
- Inspect routinely (dings, thread issues, contact wear)
- Replace early (a worn stud costs more in downtime than in purchase price)
- Store plates properly (avoid studs banging together in bins)

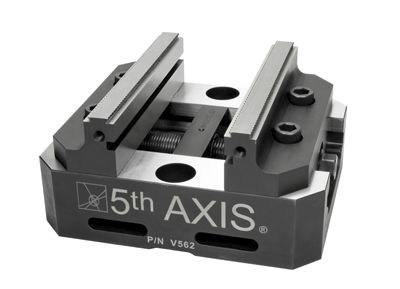

That’s it. Most “5th axis vise” disappear when these habits are normal.
Troubleshooting: Quick Signs the Interface Is the Problem
If you’re diagnosing inconsistency, these are common pull-stud-related signals:
- a plate “feels different” when docking than it used to
- repeat jobs need small corrections that weren’t needed before
- finish changes appear without CAM/tooling changes
- the first part after a swap needs extra verification repeatedly
Those symptoms don’t prove it’s the stud—but they strongly suggest you should look at the interface first.
Closing Thought
The pull stud is the cheapest place to lose the most time. In a 3R-style quick-change workflow, consistency at the interface is what turns “quick-change” into “quick production.” Treat pull studs like controlled tooling—standardize, inspect, replace early—and your repeatability will behave like you expected from day one.
